How to configure register Huawei ONT as bridge by U2000

Add / Register Huawei ONT as Bridge by U2000
Go to U2000 application double click on NE node we want to register ONT.

Double click on slot where ONT is located

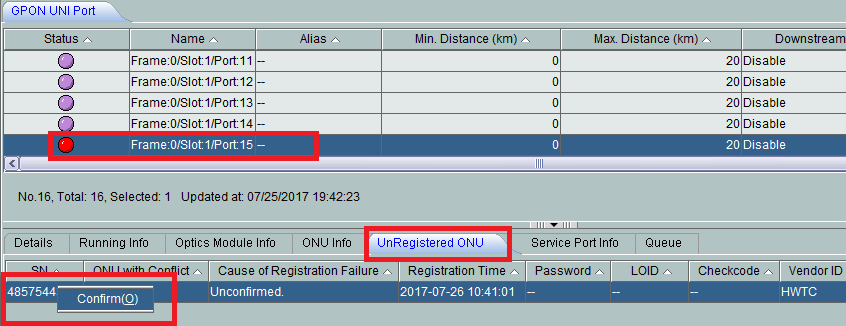

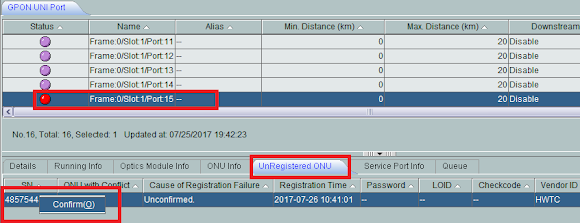

Click on PON where the ONT is located to find the ONT un register then go to that PON choose UnRegistered ONU => right click on that ONU => Confirm
in my example my new ONT is located in PON15

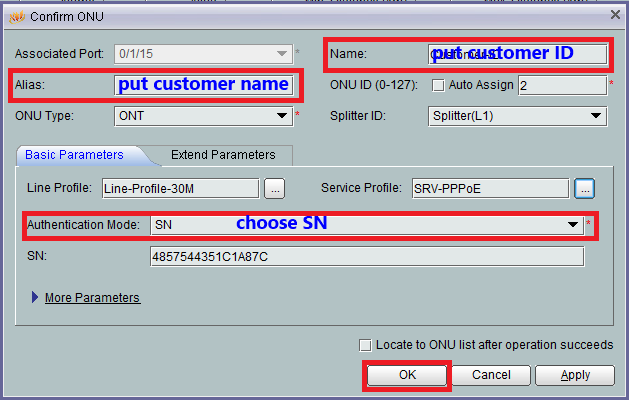

on the new window Name: put customer ID => Alias: put customer name => choose Line Profile => choose service Profile => Authentication Mode choose SN => OK.

Add Service Port:
Then we go to PON we just add ONU => Double click on that PON to access to ONU list

with new window click on ONU go to Service Port Info tab => right click on the blank window choose add.

Name: can be put your customer ID, Alias: can be put your customer name, Service Description choose HIS, Connection Type choose LAN-GPON, VLAN Choice choose Smart VLAN, Tag-Transform choose Translate, VLAN ID put VLAN number, Interface Selection: select the ONT GEM Port, Service Type choose Multi-Service VLAN, user VLAN put VLAN ID, Upstream Traffic Profile and Downstream Traffic Profile put the limit Bandwidth of traffic table. then OK.

Add access VLAN
Click on ONT go to Current ONU:UNI Port info => right click on access port choose modify => Default VLAN ID put the VLAN ID then OK.

completed register ONT as bridge then we can test our connection. If you all have any question please comment below.
