Opnet-OLT ONU configuration

How to configure Opnet OLT, register ONU add VLAN, limit bandwidth...
Configuration add ONU index, ONU type
The new ONU will got alarm de-register as below then we add or register this ONU

Go to Maintenance => click on PON => ONU Presetting => add ONU ID, Mac address and ONU Type then Create.

Then back from maintenance choose ONU Connection tab. check on both onu with the same MAC => restart.

Configuration VLAN
Click on ONU we just added choose VLAN tab => Modify => add VLAN ID and submit.

Choose Static VLAN add Group Name, VLAN ID, port and submit.

Configuration Bandwidth

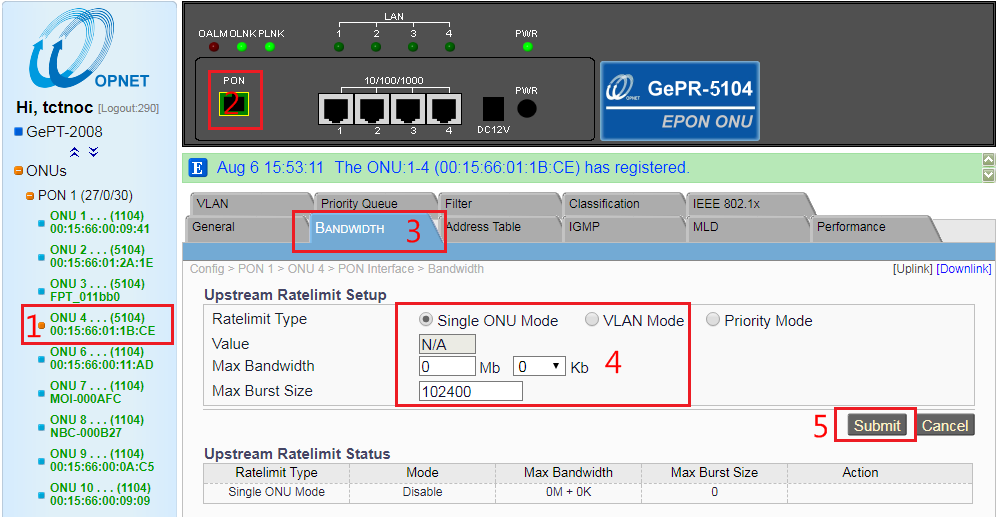

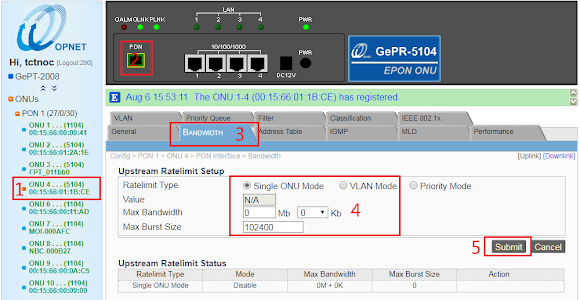

choose ONU => PON => Bandwidth => Max Burst Size that we can limit the actual bandwidth then submit.

Configuration MAC limit

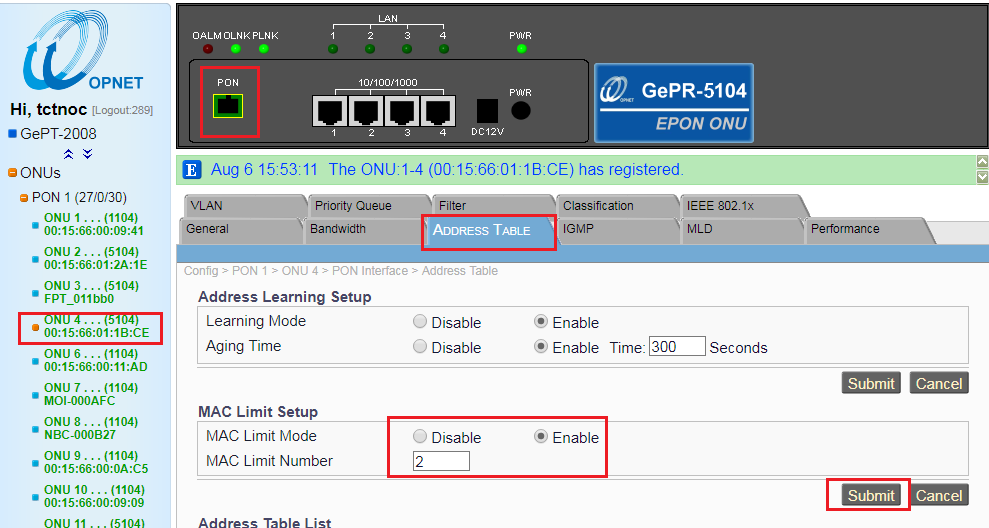

click on ONU => PON => Address Table => Enable => MAC limit Number => Submit.

*If you have any future question please comment below.
